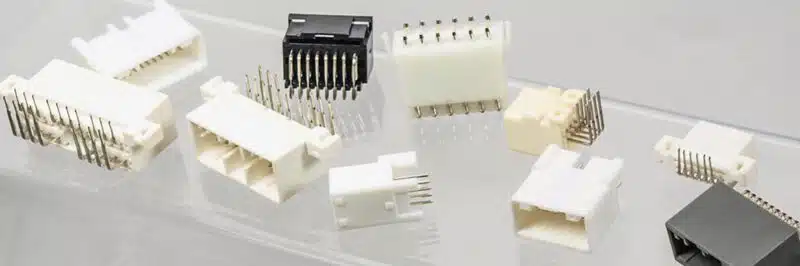

Stift- und Buchsenleisten FFC / FPC / W2W / W2B

Steckleisten, Buchsenleisten, Stecker

Unsere Stift- und Buchsenleisten bieten eine zuverlässige und platzsparende Verbindungslösung für eine Vielzahl von Anwendungen, einschließlich Elektronik, Automobil, Medizin und Industrie. Sie sind in verschiedenen Rastermaßen, Höhen, Anzahl der Kontakte und Montagemöglichkeiten erhältlich, um eine flexible Integration in Ihre Designs zu gewährleisten.

Unser Angebot umfasst Stift- und Buchsenleisten für FFC (Flexible Flat Cable), FPC (Flexible Printed Circuit), W2W (Wire-to-Wire) und W2B (Wire-to-Board) Verbindungen.

Wir bieten auch kundenspezifische Lösungen an, um sicherzustellen, dass Ihre Anforderungen erfüllt werden. Bitte senden Sie uns einfach ihre technischen Spezifikationen: info@nh-technology.de

Stift- und Buchsenleisten

Artikel
Datenblatt
BildTypPitch (mm)I [A]U [V]R [mΩ]
Type
SVHJ-F0500WVS-xxPStraight-Lead Connector FFC / FPC0.500.505030Straight-Lead Connector
ZIF, SMT Type
SVHJ-F0500WRS-xxPRight-Angle Connector FFC / FPC0.500.505030Right-Angle Connector
Top Contact Style
ZIF, SMT Type
SVHJ-F0500WRS-xxPBRight-Angle Connector FFC / FPC0.500.505030Right-Angle Connector
Bottom Contact Style
ZIF, SMT Type
SVHJ-C2504WV-xxPStraight-Lead Connector W2W2.503.0025020Straight-Lead Socket
SVHJ-C2504WR-xxPRight-Angle Connector W2W2.503.0025020Right-Angle Socket
SVHJ-C2504HM-xxPRight-Angle Connector W2W2.503.0025020Housing
SVHJ-C2504HF-xxPRight-Angle Connector W2W2.503.0025020Housing
SVHJ-B3965-HVF-xxPStraight-Lead Plug with Polarizing Peg B2B3.967.0025010Straight-Lead Plug
with Polarizing Peg
SVHJ-B3965-HV-xxPRight-Angle Connector B2B3.967.0025010Straight-Lead Plug
SVHJ-A3962H-xxPRight-Angle Connector W2B3.967.0025010Plug
SVHJ-A3961WVA-7PRight-Angle Connector W2B3.967.0025010Straight-Lead Socket
SVHJ-A3961WV-xxPRight-Angle Connector W2B3.967.0025010Straight-Lead Socket
SVHJ-A3961WR-xxPRight-Angle Connector W2B3.967.0025010Right-Angle Socket
SVHJ-A3961HA-xxPRight-Angle Connector W2B3.967.0025010Plug
SVHJ-A3961H-xxPRight-Angle Connector W2B3.967.0025010Plug
SVHJ-A1253WRSF-xxPRight-Angle Connector W2B1.251.0015030Right-Angle Socket
with Polarizing Peg
SMT Type
SVHJ-A1253WRS-xxPRight-Angle Connector W2B1.251.0015030Right-Angle Socket
SMT Type
SVHJ-A1253H-xxPwire to board Konnektor W2B1.251.0015030Plug
SVHJ-A1252WVSF-xxPWire to board Konnektor Straight-Lead Sigle Row Socket W2B1.251.0015030Straight-Lead Sigle Row Socket
SMT Type
SVHJ-A1252WVSF-2XxxPWire to board Konnektor Straight-Lead Dual Row Socket W2B1.251.0015030Straight-Lead Dual Row Socket
SMT Type
SVHJ-A1252WV-xxPStraight-Lead Sigle Row Socket W2B1.251.0015030Straight-Lead Sigle Row Socket
SVHJ-A1252WRSF-xxPRight-Angle Single Row Socket W2B1.251.0015030Right-Angle Single Row Socket
SMT Type
SVHJ-A1252WR-xxPWire to board Konnektor W2B1.251.0015030Right-Angle Sigle Row Socket
SVHJ-A1252H-xxPWire to board Konnektor W2B1.251.0015030Single Row Plug
SVHJ-A1252H-2XxxPWire to board Konnektor W2B1.251.0015030Dual Row Plug
SVHJ-A1006WRS-xxPWire to board Konnektor W2B1.001.0020040Right-Angle Socket W2B
SVHJ-A1006H-xxPWire to board Konnektor W2B1.001.0020040Plug
SVHJ - F1003WVS- xxPVertical Angle Connector FFC / FPC1.000.505030Vertical Angle Connector
SMT Type - ZIF
SVHJ - F1003WRS - xxPTRight Angle Connector FFC / FPC1.000.505030Right Angle Connector
Top Contact Style
SMT Type, ZIF
SVHJ - F1003WRS - xxPBRight Angle Connector Bottom Contact Style  SMT Type, ZIF FFC / FPC1.000.505030Right Angle Connector
Bottom Contact Style
SMT Type, ZIF
SVHJ-F0503WRS-xxPTConnector Top Contact Style 90° SMT Type, ZIF FFC / FPC0.500.505030Connector
Top Contact Style
90° SMT Type, ZIF
SVHJ-F0503WRS-xxPBFFC FPC Konnektor FFC / FPC0.500.505030Connector
Bottom Contact Style
90° SMT Type, ZIF
SVHJ-F0503WRS-xxPFFC FPC Konnektor FFC / FPC0.500.505030Connector
180° SMT Type, ZIF
