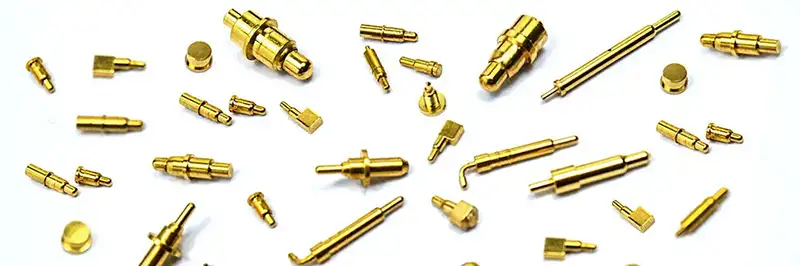

Federkontakte / Batterieladekontakte

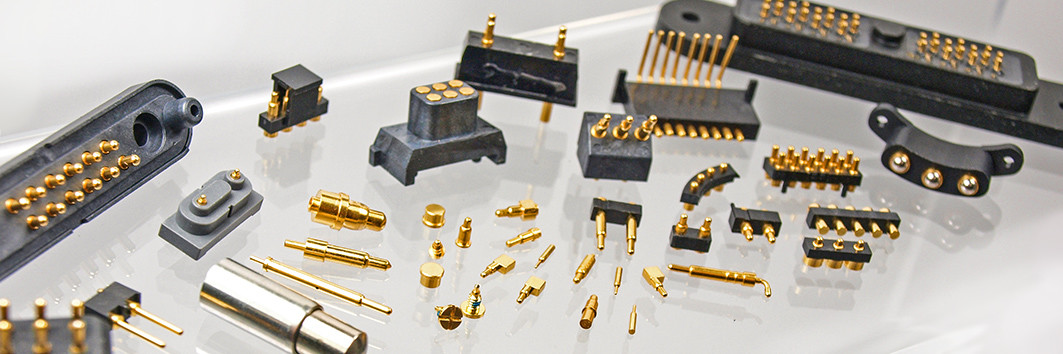

Federkontakte Pogo Pins
Federkontakte Pogo Pins

Wir bieten ein breites Spektrum an verschiedenen Federkontakten bzw. Batterieladekontakten an. Eine tabellarische Übersicht finden Sie unter den jeweiligen Produkttyp. Auch kundenspezifische Entwicklungen sind möglich.

Federkontakte werden auch Pogo Pin oder SLC (Spring Loaded Contact) genannt. Die Kontaktierung (das Schließen des elektrischen Stromkreises) wird nicht wie bei konventionellen Steckverbindern durch das Einstecken eines Stiftes in eine Buchse erzeugt, sondern durch Antastung mittels eines federunterstützten Stiftes. Vorteil dieser Technik ist eine hohe Funktionssicherheit bei einer sehr hohen Zyklenanzahl.

Flat Type Federkontakte (SMD)

Flat Type Pogo Pin SMD Federkontakt

Dimensions: mm  |  SF = Spring Force: g ±20%

P/NSFL0L1L2L3D0D1D2
SVPC-F-H203M04005,403,803,603,100,901,511,90
SVPC-F-H018M02509,707,707,002,201,002,324,00
SVPC-F-N065M22408,006,735,904,901,051,952,40
SVPC-F-H289M12007,006,505,004,301,001,482,00
SVPC-F-N082M118012,509,508,107,100,901,401,90
SVPC-F-N110M01505,404,704,003,500,901,511,60
SVPC-F-N017M115010,007,507,006,001,001,511,80
SVPC-F-N021M115021,5019,0018,0013,500,901,501,80
SVPC-F-N028M214511,209,809,408,401,001,601,90
SVPC-F-N028M614511,209,809,409,001,001,511,80
SVPC-F-N103H51404,203,402,902,501,001,511,80
SVPC-F-N200M41304,203,202,702,301,001,531,80
SVPC-F-F755AA02 1307,005,504,704,251,071,501,83
SVPC-F-N001M31309,007,006,25,201,001,502,20
SVPC-F-N082M213011,709,708,107,100,901,401,90
SVPC-F-N142M01259,808,207,304,901,001,512,26
SVPC-F-N142X01259,808,207,304,901,001,512,26
SVPC-F-H077M01203,502,802,492,081,001,631,83
SVPC-F-H299M11204,003,002,802,401,001,511,80
SVPC-F-N103M21204,503,202,902,501,001,511,80
SVPC-F-N103X51204,203,402,902,501,001,511,80
SVPC-F-N019M01204,203,402,902,601,001,511,65
SVPC-F-N103M51204,203,402,902,501,001,511,80
SVPC-F-H041M01204,703,603,302,600,901,651,80
SVPC-F-P6915FH011204,403,702,902,501,001,451,80
SVPC-F-N103M61204,503,702,902,501,001,511,80
SVPC-F-N002M71204,703,703,200,901,001,502,00
SVPC-F-P07286FH11205,304,303,503,101,001,501,90
SVPC-F-N006M11205,504,404,003,500,901,511,90
SVPC-F-H294M01207,204,604,404,001,001,511,80
SVPC-F-N044M01206,004,804,504,001,001,511,90
SVPC-F-N007M01205,904,904,403,600,901,501,90
SVPC-F-H069M01206,305,104,504,001,001,511,90
SVPC-F-H094M01206,105,354,404,400,801,371,56
SVPC-F-H056M01206,805,805,302,600,901,952,10
SVPC-F-H057M01207,005,905,304,700,901,511,80
SVPC-F-H299M01207,606,405,604,801,001,512,50
SVPC-F-H142M01207,756,756,054,750,901,552,12
SVPC-F-H064M01208,507,006,005,501,001,512,00
SVPC-F-N010M11209,207,706,305,300,901,601,90
SVPC-F-N051M012012,5010,910,009,800,801,372,00
SVPC-F-H121M112014,5013,0011,508,501,001,521,80
SVPC-F-H121M012014,5013,0011,508,501,001,521,80
SVPC-F-N030M01103,102,402,101,700,901,411,80
SVPC-F-H038M01103,102,402,101,700,901,411,80
SVPC-F-N018M01103,102,402,301,901,001,511,80
SVPC-F-N018M11103,102,502,301,901,001,511,80
SVPC-F-H061M01103,402,602,502,501,001,502,10
SVPC-F-N002M51103,402,602,502,101,001,511,80
SVPC-F-N002M61103,502,702,602,101,001,511,80
SVPC-F-H318M01103,402,802,502,101,001,512,00
SVPC-F-N200M11103,702,902,602,201,001,531,80
SVPC-F-N002M41103,702,902,602,201,001,511,80
SVPC-F-H267M01103,503,002,402,001,001,511,80
SVPC-F-N018M71103,703,002,402,001,001,511,80
SVPC-F-N103M71104,003,202,902,501,001,511,80
SVPC-F-N200M21104,003,202,902,501,001,531,80
SVPC-F-N038M01104,303,803,102,600,701,101,40
SVPC-F-N005M61104,903,903,603,101,001,511,90
SVPC-F-N005MA1105,004,003,603,100,901,511,90
SVPC-F-N005M21105,004,003,603,100,901,511,90
SVPC-F-H223M01105,004,003,603,100,901,511,90
SVPC-F-N005M71105,104,103,603,101,001,511,90
SVPC-F-H246M01105,104,103,603,101,001,511,90
SVPC-F-N005M11105,404,403,903,400,901,511,90
SVPC-F-P2078MF11105,604,404,003,201,001,602,00
SVPC-F-N040M01105,504,504,003,300,901,501,80
SVPC-F-N005M01105,504,504,003,500,901,511,90
SVPC-F-N005M41105,804,804,003,501,001,501,90
SVPC-F-N005X41105,804,804,003,501,001,501,90
SVPC-F-H223M41106,005,004,603,100,901,511,90
SVPC-F-N144M01106,305,204,503,501,001,512,50
SVPC-F-H179M01106,305,204,503,901,001,512,00
SVPC-F-N096M01106,205,504,003,500,961,511,90
SVPC-F-N042M31106,505,505,004,501,001,511,80
SVPC-F-F755AA01 1106,505,504,704,251,071,501,83
SVPC-F-N042M71106,505,505,004,001,001,511,80
SVPC-F-N042M01106,705,505,004,000,901,512,00
SVPC-F-N072M01107,005,705,505,501,001,501,90
SVPC-F-N122M01106,805,805,404,800,901,601,90
SVPC-F-N041M31107,206,205,404,601,001,511,80
SVPC-F-N041M01107,206,205,404,601,001,511,80
SVPC-F-N041X01107,206,205,404,601,001,511,80
SVPC-F-H048M01107,206,205,405,001,001,481,80
SVPC-F-N042M11107,306,305,404,601,001,511,80
SVPC-F-N124M11107,506,505,604,100,901,652,12
SVPC-F-H096M01107,506,505,604,100,901,652,12
SVPC-F-H096M11107,506,505,604,100,901,552,12
SVPC-F-N036M01107,606,606,105,301,001,511,80
SVPC-F-H031M01107,606,606,105,301,001,581,80
SVPC-F-N143M01108,206,906,204,301,001,522,50
SVPC-F-N124M31108,007,006,104,600,901,652,12
SVPC-F-N001M71108,507,306,705,701,001,512,30
SVPC-F-N079M01108,807,707,006,201,001,511,80
SVPC-F-N027M01109,308,307,506,701,001,511,80
SVPC-F-N027X31109,308,307,506,701,001,512,50
SVPC-F-N027X01109,308,307,507,001,001,511,80
SVPC-F-N027M31109,308,307,506,701,001,512,50
SVPC-F-N083M01109,508,507,306,300,901,401,90
SVPC-F-F028AA001107,908,707,907,851,001,501,80
SVPC-F-H001M011010,309,007,807,100,901,501,90
SVPC-F-N027M411010,509,507,506,701,001,512,00
SVPC-F-N028M111011,2010,209,708,901,001,511,80
SVPC-F-N082M011012,5011,508,107,100,901,331,90
SVPC-F-N028M011015,0014,0013,2012,701,001,511,80
SVPC-F-N123M011015,2014,2013,7013,100,901,503,10
SVPC-F-N123M111016,5015,5015,0014,400,901,453,10
SVPC-F-H199M01002,101,501,451,250,801,251,40
SVPC-F-H062M11002,602,001,601,300,901,472,00
SVPC-F-H192M11002,602,001,601,050,901,471,62
SVPC-F-H062M01002,602,001,601,300,901,472,00
SVPC-F-F651AA011002,802,001,901,500,901,502,00
SVPC-F-H072M01003,402,702,451,650,901,481,60
SVPC-F-N002M21004,003,002,502,101,001,511,80
SVPC-F-H008M11004,103,203,502,200,801,301,40
SVPC-F-N119M11004,703,302,802,401,001,702,10
SVPC-F-N008M01004,403,403,202,600,901,601,80
SVPC-F-H168M01004,503,702,902,501,001,511,80
SVPC-F-H042M01006,405,505,004,501,001,502,00
SVPC-F-N042M41006,906,005,404,601,001,511,80
SVPC-F-N001M01008,007,006,205,201,001,512,20
SVPC-F-N001M11008,007,006,205,201,001,512,20
SVPC-F-H065M01008,007,006,205,801,001,482,20
SVPC-F-N010M91008,507,306,305,300,901,601,90
SVPC-F-H015M01008,507,306,305,300,901,502,20
SVPC-F-H015M11008,507,306,305,300,901,501,90
SVPC-F-N115M01008,707,506,204,301,001,532,50
SVPC-F-H029M01009,007,806,305,301,001,511,90
SVPC-F-H186M01009,007,806,305,301,001,511,80
SVPC-F-N002M01009,007,806,305,301,001,601,90
SVPC-F-N017M01009,008,007,006,001,001,512,20
SVPC-F-N011M01009,308,306,305,301,001,601,90
SVPC-F-N011X01009,308,306,305,301,001,601,90
SVPC-F-N011M210017,5016,3014,5513,551,001,512,00
SVPC-F-N011M410019,0017,8016,0515,051,001,512,00
SVPC-F-H165M0957,356,455,655,050,901,481,53
SVPC-F-N018M9802,201,751,551,151,001,511,80
SVPC-F-H126M0802,201,751,550,751,001,482,20
SVPC-F-N002M1803,202,202,001,601,001,511,80
SVPC-F-N050M2804,003,002,301,201,001,501,80
SVPC-F-N050X4804,003,002,301,201,001,531,80
SVPC-F-N103M1804,203,402,902,500,901,511,80
SVPC-F-N050M3804,403,402,701,201,001,531,80
SVPC-F-N066M1804,703,503,502,700,701,201,60
SVPC-F-N005M8804,803,803,302,800,901,511,90
SVPC-F-N010M0804,904,103,502,500,901,491,90
SVPC-F-F281AA01805,764,243,902,690,911,521,37
SVPC-F-N010M5805,204,404,003,201,201,601,90
SVPC-F-N010M2805,204,404,003,200,901,601,90
SVPC-F-N048M1805,504,504,003,401,001,501,90
SVPC-F-H247M1806,604,604,202,301,001,501,80
SVPC-F-H229M0805,704,704,303,951,001,511,80
SVPC-F-H247M3806,804,804,502,701,001,801,50
SVPC-F-N007M1805,805,004,303,600,901,512,30
SVPC-F-H097M0807,206,305,404,601,001,511,80
SVPC-F-N128M48012,6010,910,107,100,801,251,34
SVPC-F-N128M18012,6010,9010,107,10
0,801,251,60
SVPC-F-P5773PH018012,1011,39,607,100,801,251,60
SVPC-F-N128M38012,6011,1010,107,100,801,251,60
SVPC-F-N016M0754,703,803,400,900,901,482,40
SVPC-F-H311M0704,303,753,302,750,901,501,83
SVPC-F-H137M0704,904,103,502,000,901,552,12
SVPC-F-H136M0706,805,705,303,800,901,552,12
SVPC-F-F810AA05-1ACR707,506,806,105,701,001,481,80
SVPC-F-N010M4708,507,806,305,300,901,601,90
SVPC-F-P3068FH01 655,104,354,253,250,601,001,40
SVPC-F-H028M0656,805,705,303,800,901,652,12
SVPC-F-N001M2658,006,906,205,201,001,512,30
SVPC-F-N001X2658,006,906,205,201,001,512,30
SVPC-F-N005M960-1007,405,905,805,400,901,502,00
SVPC-F-F3366AA01601,601,201,100,900,771,251,40
SVPC-F-F2557MF1603,603,052,452,300,801,252,00
SVPC-F-N067M0604,503,703,503,001,001,512,50
SVPC-F-H268M0605,004,003,603,101,001,511,60
SVPC-F-H010M0605,404,304,103,60,901,501,60
SVPC-F-H345M0605,804,804,003,550,901,351,90
SVPC-F-F083AA06608,206,706,606,561,001,501,62
SVPC-F-N080M1552,952,702,602,601,001,50N
SVPC-F-H265M0502,632,432,232,230,400,700,70
SVPC-F-H134M0503,503,002,300,500,802,501,50
SVPC-F-H173M0503,503,002,301,900,801,321,50
SVPC-F-N018M4503,503,002,502,000,751,321,50
SVPC-F-P2552PH01507,055,605,453,800,701,201,05
SVPC-F-N020M1507,006,004,504,101,001,511,80
SVPC-F-P07098FH1507,406,005,905,500,901,482,00
SVPC-F-H118M15014,0013,2512,5010,401,001,501,60
SVPC-F-N114M0-140-604,203,802,702,700,901,401,40
SVPC-F-N114M040-604,504,003,003,000,901,401,40
SVPC-F-H027M0402,501,951,551,201,001,401,60
SVPC-F-F292AA01404,203,702,902,351,001,481,80
SVPC-F-N114M230-405,705,204,204,200,420,800,80
SVPC-F-H199M2302,302,181,501,200,801,251,40
SVPC-F-F030AA00302,952,801,801,820,801,251,70
SVPC-F-H287M0303,253,152,001,700,801,252,00
SVPC-F-N080M0253,503,002,802,800,701,201,25

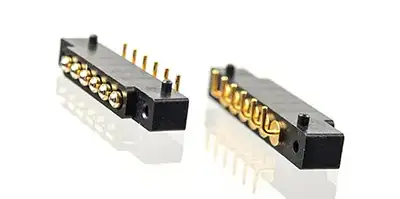

Flat Type Federkontakte (SMD) Connector

  Dimensions: mm  |  SF = Spring Force: g ±20% | P = Positioner | A0,W0,H0 = Housing | Y = Yes

P/NPinsPitchSFL0L1A0W0H0PCap
SVPC-F-N018M9-01CCR10,00802,201,75----Y
SVPC-F-H126M0-H1ACR10,00802,201,75----Y
SVPC-F-H199M2-H1ACR10,00302,302,18----Y
SVPC-F-H062M1-H1ACR10,001002,602,00----Y
SVPC-F-H062M0-01CCR10,001002,602,00----Y
SVPC-F-H038M0-H1CCR10,001103,102,40----Y
SVPC-F-N018M1-01CCR10,001103,102,50----Y
SVPC-F-H287M0-H1ACR10,00303,253,15----Y
SVPC-F-N002M5-01CCR10,001103,402,60----Y
SVPC-F-H318M0-H1ACR10,001103,402,80----Y
SVPC-F-H072M0-01CCR10,001003,402,70----Y
SVPC-F-N103M7-01CCR10,001104,003,20----Y
SVPC-F-H299M1-H1ACR10,001204,003,00----Y
SVPC-F-N103M5-H1ACR10,001204,203,40----Y
SVPC-F-N103M5-01CCR10,001204,203,40----Y
SVPC-F-N103M5-01ACR10,001204,203,40----Y
SVPC-F-N103M6-H1ACR10,001204,503,70----Y
SVPC-F-N103M6-01CCR10,001204,503,70----Y
SVPC-F-N005M8-H1ACR10,0060-804,803,80----Y
SVPC-F-N005M6-01CCR10,001104,903,90----Y
SVPC-F-N005M7-01CCR10,001105,104,10----Y
SVPC-F-H203M0-01ACR10,004005,403,80----Y
SVPC-F-N005M1-01CCR10,001105,504,40----Y
SVPC-F-N005M0-01CCR10,001105,504,50----Y
SVPC-F-N005M0-01ACR10,001105,504,50---YY
SVPC-F-N007M1-01CCR10,00805,805,00----Y
SVPC-F-N005M4-01CCR10,001105,804,80----Y
SVPC-F-N005M4-01AMR10,001105,804,804,102,502,30YY
SVPC-F-N007M0-01CCR10,001205,904,90----Y
SVPC-F-H069M0-01BMR10,001206,305,103,20-2,50-Y
SVPC-F-N144M0-01CCR10,001106,305,20----Y
SVPC-F-H042M0-01CCR10,001006,405,50----Y
SVPC-F-N042M3-01AMR10,001106,505,504,102,502,30YY
SVPC-F-N042M0-01CCR10,001106,705,50----Y
SVPC-F-N042M4-01CCR10,001006,906,00----Y
SVPC-F-N041M0-01AMR10,001257,206,004,102,502,30YY
SVPC-F-H048M0-01AMR10,001107,206,204,102,503,50YY
SVPC-F-H096M0-H01CCR10,001107,506,50----Y
SVPC-F-H096M1-H01CCR10,001107,506,50----Y
SVPC-F-H299M0-H01ACR10,001207,606,40----Y
SVPC-F-N041M2-H01ACR10,001107,706,70----Y
SVPC-F-N001M2-01CCR10,00658,006,90----Y
SVPC-F-N001M1-H01CCR10,001008,007,00----Y
SVPC-F-H065M0-01AMR10,001008,007,004,102,502,30YY
SVPC-F-N143M0-01CCR10,001108,206,90----Y
SVPC-F-N010M9-01CCR10,001008,507,30----Y
SVPC-F-N001M7-01CCR10,001108,507,30----Y
SVPC-F-N001M7-01BMR10,001108,507,303,20-2,50-Y
SVPC-F-N010M1-01CCR10,001209,207,70----Y
SVPC-F-N027M0-01CCR10,001109,308,30----Y
SVPC-F-H038M0-H2AMR22,501103,102,405,002,501,70-Y
SVPC-F-N002M5-02B5MR22,601103,402,605,402,502,10-Y
SVPC-F-N002M5-02B6MR22,501103,402,605,502,502,00YY
SVPC-F-H267M0-02JMR23,501103,502,806,002,501,85-Y
SVPC-F-N002M4-02FHR23,001103,702,905,102,502,00Y-
SVPC-F-N002M4-02BMR22,501103,702,905,502,502,00-Y
SVPC-F-N002M4-02HNR23,501103,702,906,202,502,00-Y
SVPC-F-N018M7-02BMR22,501103,703,005,502,502,00-Y
SVPC-F-N103M7-02BMR22,501104,003,205,502,502,00-Y
SVPC-F-N200M2-02HNR23,501104,003,206,202,502,00YY
SVPC-F-N103M7-02HNR23,501104,003,206,202,502,00-Y
SVPC-F-N103M7-02FHR23,001104,003,205,102,502,00-Y
SVPC-F-N103M5-02GMR23,501204,203,406,202,502,30-Y
SVPC-F-N103M5-02AHR26,501204,203,409,202,502,50--
SVPC-F-N103M5-02BMR22,501204,203,405,502,502,00-Y
SVPC-F-N103M6-02HNR23,501204,503,706,202,502,00-Y
SVPC-F-N103M6-02GHR23,501204,503,706,202,502,30-Y
SVPC-F-N103M6-02FMR23,501204,503,706,802,502,30-Y
SVPC-F-N103M6-02BMR22,501204,503,705,502,502,00-Y
SVPC-F-N103M6-02ANR26,501204,503,709,202,502,50YY
SVPC-F-N103M6-02A6MR26,501204,503,709,202,502,50-Y
SVPC-F-N103M6-02ALR26,501204,503,709,202,502,50--
SVPC-F-N103M6-02A2MR22,601204,503,705,402,502,10YY
SVPC-F-N103M6-02AHR22,601204,503,705,402,502,10--
SVPC-F-N103M6-02GMR23,501204,503,706,202,502,30-Y
SVPC-F-N005M8-02BMR22,5060-1004,803,805,502,502,00-Y
SVPC-F-N005M6-02BMR22,501104,903,905,402,502,00-Y
SVPC-F-N005M6-02AHR23,501104,903,907,602,503,45Y-
SVPC-F-N005M6-02A2MR22,601104,903,905,402,502,10-Y
SVPC-F-N005M6-02FMR23,501104,903,906,802,502,30-Y
SVPC-F-N005M6-02A5MR25,001104,903,908,602,502,40YY
SVPC-F-N005M2-H2AMR24,001105,004,006,502,501,80-Y
SVPC-F-N005M2-02JMR23,501105,004,006,002,501,85-Y
SVPC-F-N005M2-02GMR23,501105,004,006,202,502,30-Y
SVPC-F-N005M2-02FMR23,001105,004,005,102,502,00-Y
SVPC-F-N005M2-02FHR23,001105,004,005,102,502,00--
SVPC-F-N005M2-02A4HR24,001105,004,007,402,503,30--
SVPC-F-N005M2-02A3HR23,501105,004,007,602,503,45Y-
SVPC-F-N005M2-02AMR22,501105,004,005,402,503,00-Y
SVPC-F-H223M0-02AHR23,501105,004,007,602,503,45Y-
SVPC-F-N005M7-02AMR22,501105,104,105,402,503,00-Y
SVPC-F-N005M7-02AHR23,501105,104,107,602,503,45Y-
SVPC-F-N005M1-02BMR22,501105,404,405,502,502,00-Y
SVPC-F-N005M1-02FKR23,501105,404,406,802,502,30-Y
SVPC-F-N005M1-02A3HR23,501105,404,407,602,503,45Y-
SVPC-F-H263M0-02BMR22,501105,404,405,502,502,00-Y
SVPC-F-H010M0-H2AHR23,00605,404,305,803,203,50Y-
SVPC-F-H010M0-02AHR24,00605,404,307,402,503,30--
SVPC-F-N005M1-02A4HR24,001105,404,407,402,503,30--
SVPC-F-N005M1-02AMR23,501105,504,507,602,503,45YY
SVPC-F-N005M0-02GMR23,501105,504,506,202,502,30-Y
SVPC-F-N005M0-02FMR23,001105,504,505,102,502,00-Y
SVPC-F-N005M0-02EHR22,501105,504,5010,102,502,50-Y
SVPC-F-N005M0-02A4MR24,001105,504,507,402,503,30Y-
SVPC-F-N005M0-02AHR23,501105,504,507,602,503,45Y-
SVPC-F-N005M0-02A2MR22,501105,504,505,402,503,00-Y
SVPC-F-H198M0-H2AMR24,001205,504,406,502,501,80-Y
SVPC-F-N005N4-02CMR23,501105,804,807,602,502,35-Y
SVPC-F-N005N4-02AMR23,501105,804,807,602,503,45-Y
SVPC-F-N005M4-02CMR23,501105,804,807,602,802,35-Y
SVPC-F-N005M4-02A5MR25,081105,804,807,602,502,95-Y
SVPC-F-N005M4-02AHR24,001105,804,807,402,503,30-Y
SVPC-F-N005M4-02A3MR23,501105,804,807,602,503,45YY
SVPC-F-N005M4-02A2MR22,501105,804,805,402,503,00-Y
SVPC-F-N007M0-02A3MR23,501205,904,907,602,503,50YY
SVPC-F-N007M0-02A6MR26,501205,904,909,202,502,50-Y
SVPC-F-N007M0-02A2MR22,501205,904,905,402,503,00-Y
SVPC-F-H273M0-02AHR24,001106,004,407,402,503,30-Y
SVPC-F-H223M4-02FW23,001106,005,005,102,502,00-Y
SVPC-F-H179M0-H02BMR23,001106,305,206,502,503,70YY
SVPC-F-H069M0-02BMR22,501206,305,105,502,502,00-Y
SVPC-F-N042M7-02FMR23,001106,505,505,102,502,00-Y
SVPC-F-N042M3-02FMR23,001106,505,505,102,502,00-Y
SVPC-F-N042M3-02A5MR25,001106,505,508,602,502,40YY
SVPC-F-N042M3-02AHR24,001106,505,507,402,503,30--
SVPC-F-N042M3-02A2MR22,501106,505,505,402,503,00-Y
SVPC-F-N042M0-H02AMR24,001106,705,506,502,501,80-Y
SVPC-F-N042M0-02FMR23,001106,705,505,102,502,00-Y
SVPC-F-N042M0-02AMR22,501106,705,505,402,503,00-Y
SVPC-F-H171M0-H02CHR23,50807,006,006,002,506,00--
SVPC-F-H057M0-H02AMR24,001207,005,906,502,501,80-Y
SVPC-F-N041M0-02CH23,501107,206,207,602,502,35--
SVPC-F-N041M0-02AMR22,501107,206,205,402,503,00-Y
SVPC-F-H031M0-02BHR25,001007,606,608,103,104,50--
SVPC-F-N036M0-02GMR23,501107,606,606,202,502,30-Y
SVPC-F-N001M2-02DMR23,50658,006,906,803,401,50-Y
SVPC-F-N001M1-02AMR25,081008,007,007,602,502,95-Y
SVPC-F-N001M2-02AMR24,00658,006,907,402,503,30-Y
SVPC-F-N010M9-02AMR23,701008,507,308,402,905,95YY
SVPC-F-N001M7-02EMR23,501108,507,308,903,004,10YY
SVPC-F-N001M7-02DMR23,501108,507,306,803,401,50-Y
SVPC-F-H015M1-02DMR23,501008,507,306,803,401,50--
SVPC-F-H015M0-H02AMR26,501008,507,309,202,502,50-Y
SVPC-F-H015M0-H02AHR26,501008,507,309,202,502,50--
SVPC-F-N002M0-02AMR23,701009,007,808,402,904,30YY
SVPC-F-N002M0-02BHR25,001009,007,808,103,104,50--
SVPC-F-N028M6-02GMR23,5014511,209,806,202,502,30-Y
SVPC-F-N028M2-02AMR23,7014511,209,808,402,905,30YY
SVPC-F-N002M1-03AMR32,50803,202,208,602,502,40-Y
SVPC-F-H173M0-H3AHR32,00503,503,006,303,551,45--
SVPC-F-H073M0-03EMR32,501103,702,907,602,501,80-Y
SVPC-F-H008M1-H3AMR31,801004,103,206,202,501,70-Y
SVPC-F-N103M5-03BMR33,001204,203,4010,102,502,70YY
SVPC-F-N103M6-03CMR32,501204,503,708,602,502,50-Y
SVPC-F-N103M6-03AMR33,501204,503,7011,102,503,45YY
SVPC-F-H168M0-H3AMR33,501004,503,709,502,502,30-Y
SVPC-F-H179M0-03AMR33,001106,305,2010,102,503,30YY
SVPC-F-N042M3-03AMR33,001106,505,5010,102,503,30YY
SVPC-F-H255M0-03DMR32,50507,405,908,602,504,00YY
SVPC-F-N001M2-03BMR32,50658,006,907,602,504,40-Y
SVPC-F-H122M0-03AMR33,50658,006,9011,102,503,45YY
SVPC-F-N001M7-03AMR33,001108,507,3010,102,503,30YY
SVPC-F-H064M0-03AMR32,501208,507,008,602,502,40YY
SVPC-F-H186M0-03CMR32,501009,007,808,602,502,50-Y
SVPC-F-H029M0-03AMR33,501009,007,8011,102,503,45-Y
SVPC-F-N002M5-04AMR42,151103,402,609,802,502,80YY
SVPC-F-N002M4-04DMR42,501103,702,9010,902,801,60-Y
SVPC-F-N103M4-04AMR42,151204,203,409,802,502,80YY
SVPC-F-N103M6-04AMR42,501204,503,7011,102,503,25YY
SVPC-F-N005M2-04FMR43,001105,004,0013,102,502,00YY
SVPC-F-N005M2-04B2MR42,501105,004,0010,102,502,50-Y
SVPC-F-N005M2-H04AMR44,501105,004,0015,602,503,85YY
SVPC-F-H268M0-04B1MR42,15605,004,009,802,802,70-Y
SVPC-F-N005M7-04AMR42,151105,104,109,802,502,80YY
SVPC-F-H246M0-H4CMR42,201105,104,155,005,003,00-Y
SVPC-F-N005M0-04FMR43,001105,504,5013,102,503,00YY
SVPC-F-N005M0-04BMR42,501105,504,5010,102,502,50-Y
SVPC-F-H229M0-H04CM42,50805,704,7010,103,202,00-Y
SVPC-F-N005M4-04BMR42,501105,804,8010,102,502,50-Y
SVPC-F-N005N4-04BMR42,501105,804,8010,102,502,50-Y
SVPC-F-N044M0-04BMR42,501206,004,8010,102,502,50-Y
SVPC-F-N042M0-04BMR42,501106,705,5010,102,502,50-Y
SVPC-F-H195M0-H04CMR42,201107,206,105,005,003,00YY
SVPC-F-N042M1-04BMR42,201007,306,3011,003,205,80YY
SVPC-F-N115M0-04ARR43,701008,707,5014,602,503,24Y-
SVPC-F-N050M2-05AMR53,00804,003,0015,003,002,00YY
SVPC-F-N050X4-05AMR52,50804,003,0015,003,002,00-Y
SVPC-F-N103M5-05AMR52,501204,203,4015,003,002,00YY
SVPC-F-N103N5-05AMR52,501204,203,4015,003,002,00YY
SVPC-F-N096-N0-05AMR52,501106,205,5015,003,002,00YY
SVPC-F-H294M0-H05AMR52,541207,204,6017,782,505,40YY
SVPC-F-H244M0-H05AHR53,001208,507,5015,503,504,00--
SVPC-F-N200M4-06CNR62,501304,203,2015,102,501,70Y-
SVPC-F-N041M0-06CMR62,501107,206,2015,102,501,70--
SVPC-F-H121M3-H06AHR63,5012011,5010,0014,009,008,00--
SVPC-F-H121M2-H06AHR63,5012011,5010,0014,009,008,00--
SVPC-F-H121M1-H06AHR63,5012011,5010,0014,009,008,00--
SVPC-F-H121M0-H06AHR63,5012011,5010,0014,009,008,00Y-

Plug-In Pogo Pin (THT)

Plug In Pogo Pin THT Federkontakt

Dimensions: mm  |  SF = Spring Force: g ±20%

P/NSFL0L1L2L3L4D0D1D2Ø D3
SVPC-P-P6269FH01601,391,111,090,990,100,400,800,800,70
SVPC-P-H166M01104,002,852,502,492,501,001,481,801,46
SVPC-P-H008M01404,203,602,802,300,800,801,301,400,80
SVPC-P-N164M01104,503,503,252,456,000,901,501,900,80
SVPC-P-H308M01104,503,503,252,456,000,901,501,901,20
SVPC-P-H066M0804,703,603,003,002,500,901,901,500,40
SVPC-P-H355M01004,703,702,401,800,501,001,502,201,50
SVPC-P-N050M0904,753,953,502,800,400,801,252,001,25
SVPC-P-H234M1704,804,302,902,400,800,901,511,800,80
SVPC-P-N181M21104,804,003,302,400,801,031,502,100,80
SVPC-P-H247M0504,904,103,001,800,600,901,301,601,35
SVPC-P-H133M71505,003,804,503,001,502,003,202,002,00
SVPC-P-H324M0705,204,153,052,650,651,071,501,830,70
SVPC-P-P782AA011105,204,203,202,206,000,901,751,900,80
SVPC-P-H284M01105,504,504,003,500,800,901,481,900,80
SVPC-P-N160M01405,504,104,004,002,000,901,501,500,70
SVPC-P-N089M01105,504,504,004,001,401,002,001,511,40
SVPC-P-H229M21005,604,704,203,700,801,001,512,001,00
SVPC-P-H016M01105,604,603,953,951,000,901,431,430,51
SVPC-P-H229M1805,704,704,303,950,801,001,511,800,60
SVPC-P-N059M5655,704,203,402,902,550,761,702,801,37
SVPC-P-P2525PH021205,705,204,704,700,600,901,431,430,51
SVPC-P-H203M1805,805,004,303,950,800,901,501,800,60
SVPC-P-N059M01005,804,903,503,002,300,801,602,801,40
SVPC-P-H133M01205,804,804,004,002,500,901,501,500,60
SVPC-P-H164M01106,004,503,803,801,602,303,003,501,50
SVPC-P-H051M0150-2006,104,905,305,301,001,702,702,501,50
SVPC-P-P6877PH011106,205,204,804,805,500,901,481,480,80
SVPC-P-H016M21106,205,204,553,950,600,901,430,510,51
SVPC-P-N181M61006,405,505,004,500,801,001,512,001,00
SVPC-P-H024M01006,405,505,004,500,801,001,502,001,00
SVPC-P-H181M31006,505,705,503,900,800,901,512,001,00
SVPC-P-H016M01106,605,604,953,951,000,901,430,510,51
SVPC-P-N181M81006,705,806,104,800,801,001,502,001,00
SVPC-P-H024M21006,705,805,304,800,801,001,502,001,00
SVPC-P-H181M01106,765,855,404,600,801,001,512,701,00
SVPC-P-N183M0150-2007,005,706,204,801,401,702,502,701,50
SVPC-P-N130M1507,106,406,104,300,800,801,201,30
SVPC-P-N181M01107,206,206,004,600,601,001,481,801,30
SVPC-P-N130M2507,306,405,304,750,800,801,201,301,02
SVPC-P-H022M01107,306,305,905,700,950,901,481,101,10
SVPC-P-P07149PH11ACR507,406,005,805,402,000,901,512,001,00
SVPC-P-H181M21007,506,706,005,200,800,901,512,001,00
SVPC-P-H256M01107,606,606,105,300,801,001,481,801,00
SVPC-P-H007M2907,606,706,306,100,800,901,511,701,10
SVPC-P-H092M01207,804,806,004,002,000,901,500,600,60
SVPC-P-N059M01008,105,805,803,002,300,801,602,801,40
SVPC-P-N059M11008,105,805,803,001,300,801,602,801,40
SVPC-P-P2791PH01 1008,106,706,205,601,000,801,281,700,80
SVPC-P-H114M11508,507,206,305,301,700,901,601,901,20
SVPC-P-N027M91108,707,707,505,800,601,001,511,801,30
SVPC-P-N181M41108,707,707,506,200,801,001,482,001,30
SVPC-P-H200M01708,747,243,543,043,861,001,502,002,00
SVPC-P-H044M01908,807,504,852,002,001,502,201,501,50
SVPC-P-H046M01009,007,807,106,300,801,001,951,001,00
SVPC-P-N003M01009,008,006,305,502,400,801,601,900,80
SVPC-P-H007M0909,108,207,855,000,800,901,481,101,10
SVPC-P-N065M02409,207,937,104,901,201,051,932,401,65
SVPC-P-N059M31009,308,307,003,702,800,801,602,801,40
SVPC-P-N182M01009,508,007,005,301,201,201,751,901,75
SVPC-P-N105M91209,508,505,005,002,501,001,502,401,15
SVPC-P-H236M012010,007,207,007,002,002,003,003,000,90
SVPC-P-H232M118010,008,207,202,900,802,504,104,601,50
SVPC-P-H237M012010,007,207,007,002,001,202,002,000,80
SVPC-P-H184M09010,208,707,507,503,601,001,512,001,46
SVPC-P-H114M015010,208,906,305,301,700,901,601,901,20
SVPC-P-H181M190-15010,509,508,807,801,001,001,511,801,00
SVPC-P-H054M08510,508,987,635,132,501,371,982,501,02
SVPC-P-N029M311010,909,508,708,202,501,001,511,800,60
SVPC-P-H180M035-5511,109,608,508,5010,701,001,481,510,60
SVPC-P-H180M135-5511,509,608,508,5010,701,001,481,510,60
SVPC-P-H150M013011,508,007,307,301,701,201,571,901,23
SVPC-P-H121M415011,809,508,807,301,701,001,471,801,23
SVPC-P-N029M211013,7012,5011,0010,502,501,001,511,800,60
SVPC-P-P07603PH113014,1011,1010,9010,804,001,302,002,201,20
SVPC-P-P638AA0113014,1011,108,007,504,001,301,971,201,20
SVPC-P-H180M510015,2013,2015,0010,603,300,901,492,000,60
SVPC-P-N029M113015,5013,5011,0010,502,501,001,511,800,60
SVPC-P-H131M013016,3014,3012,7012,202,001,001,511,800,60
SVPC-P-N029M010017,2016,2015,7013,202,501,001,511,800,60
SVPC-P-P851AA0110019.0018,1016,0515,051,701,001,482,001,00
SVPC-P-N165M050019,6616,0612,6612,660,505,336,566,561,00
Plug In Pogo Pin THT Federkontakt

Dimensions: mm  |  SF = Spring Force: g ±20% | P = Positioner | A0,W0,H0 = Housing | Y = Yes

P/NPinsPitchSFL0L1A0W0H0PCap
SVPC-P-H166M0-05BHR52,501104,002,858,004,502,00--
SVPC-P-H008M0-H3AMR31,801404,203,606,202,501,70YY
SVPC-P-N050M3-05AMR53,00804,403,4015,003,002,00YY
SVPC-P-H234M1-01ACR10,00704,804,30----Y
SVPC-P-H247M0-H12AMR122,20504,904,1013,205,001,60YY
SVPC-P-H229M2-H01ACR10,001005,604,70----Y
SVPC-P-H203M1-H02BMR23,00805,805,006,502,503,70YY
SVPC-P-H024M0-01CCR10,001006,405,50----Y
SVPC-P-H024M2-01CCR10,001006,705,80----Y
SVPC-P-H181M0-H01ACR10,001106,765,85----Y
SVPC-P-N181M0-02FMR23,001107,206,205,502,502,00-Y
SVPC-P-H022M0-02FHR23,001107,306,305,102,502,00--
SVPC-P-H256M0-01ACR10,001107,606,60----Y
SVPC-P-H007M2-H02AMR23,60907,606,706,402,502,20-Y
SVPC-P-N181M4-01CCR10,001108,707,70----Y
SVPC-P-H046M0-01CCR10,001009,007,80----Y
SVPC-P-H007M0-H02AMR23,60909,108,206,402,502,20-Y
SVPC-P-N105M9-04AHR43,751209,508,5016,974,227,35--
SVPC-P-H184M0-H04BHR42,509010,208,7017,506,006,50--
SVPC-P-H181M1-H01ACR10,0090-15010,509,50----Y
SVPC-P-H121M4-H08APT83,5015011,809,5021,849,008,00--
SVPC-P-H180M5-H14AHT142,5410015,2013,2045,007,9010,78--
SVPC-P-H131M0-03BHR32,5013016,3014,307,602,504,40--

Right Angle Pogo Pins

Right Angle Pogo Pin

Dimensions: mm  |  SF = Spring Force: g ±20%

P/NSFL0L1L2L3D0D1D2D4
SVPC-R-H003M61204,93,93,51,211,51,5-
SVPC-R-H003M21204,93,93,51,211,51,5-
SVPC-R-H003M01204,93,93,51,211,51,5-
SVPC-R-H050M0805,14,23,61,50,7521,5-
SVPC-R-H003M11205,24,23,51,211,51,5-
SVPC-R-H036M01205,34,33,51,211,51,5-
SVPC-R-H003M31205,34,33,51,211,51,5-
SVPC-R-H012M7905,64,23,91,711,512,70,5
Right_Angle_Type_Multiple

Dimensions: mm  | SF = Spring Force: g ±20% | P = Positioner | A0,W0,H0 = Housing | Y = Yes

P/NPinsPitchSFL0L1A0W0H0P
SVPC-R-H003M7-H03ARR33,11204,93,98,94,353Y
SVPC-R-H003M6-H03DRR32,51204,93,97,83,353-
SVPC-R-H003M2-H03BRR32,51204,93,97,83,93Y
SVPC-R-H003M0-H03BRR32,51204,93,97,72,83Y
SVPC-R-H003M0-H01CRR101204,93,942,43Y
SVPC-R-H050M0-H03ARR32,5805,14,27,52,53,4-
SVPC-R-H003M1-H03BRR32,51205,24,27,72,83Y
SVPC-R-H036M0-H02CRR22,51205,34,35,52,73Y
SVPC-R-H020M0-H02BRR22,51205,34,35,52,73Y
SVPC-R-H003M3-H03BRR32,51205,34,37,72,83Y
SVPC-R-H012M7-H03BRR32,8905,64,28,62,73,2Y
SVPC-R-H012M2-H03BRR32,8905,64,28,62,73,2Y
SVPC-R-H016M2-H03ARR31,91106,25,26,341,74,4-
SVPC-R-H016M0-H04ARR421106,65,69,81,84,95-

Special Spec

Federkontakte Special Specification

Dimensions: mm  |  SF = Spring Force: g ±20% |  P = Positioner  |  A0,W0,H0 = Housing  |  Y = Yes

P/NPinsPitchSFL0L1A0W0H0PCap
SVPC-S-H199M0-H05BMR521102,11,56,44,41,3YY
SVPC-S-N005M6-05BHR52,51104,93,984,52--
SVPC-S-N005M7-05BHR52,51105,14,184,52--
SVPC-S-N005M0-05BHR52,51105,54,584,52--
SVPC-S-N042M3-05BMR52,51106,55,584,52--
SVPC-S-N183M0-H05ARR52,95150-20075,722,987,37,49Y-
SVPC-S-N142X0-04BRR431259,88,212,43,43,7--
Bending Type Pogo Pin Connectors

Dimensions: mm  |  SF = Spring Force: g ±20% |  P = Positioner  |  A0,W0,H0 = Housing  |  Y = Yes

P/NPinPitchSFL0L1A0W0H0
SVPC-B-H094M0-H04ARR41,71206,15,3511,55,76,2
SVPC-B-N153M1-04DHR431106,25,231,910,54,9
SVPC-B-H180M0-H08ART81,7535-5511,19,621,239
Double Ended Pin

Dimensions: mm  |  SF = Spring Force: g ±20%

P/NSFL0L1L2L3D0D1D2
SVPC-D-H025M01205,84,85,54,312,51,6
SVPC-D-H202M01007,156,155,95,51,833

While the regular pogo pin is designed for vertical movement, we developed a special design for lateral movement. It is based on the bias tail design. The bias tail of plunger creates lateral force and better contact.The matting side can be a circular track for a 360° strong rotation. It’s a best solution for product display, rotating camera and robot, etc.

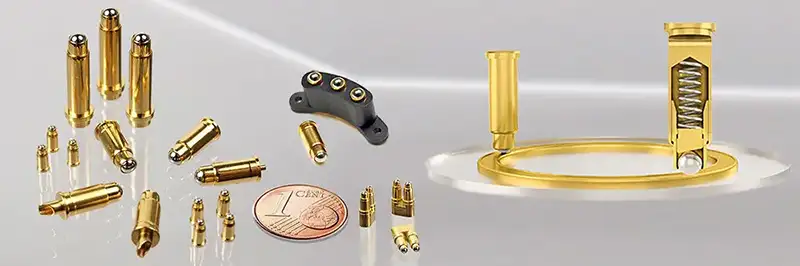

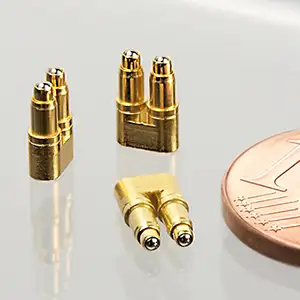

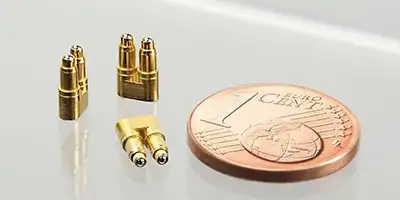

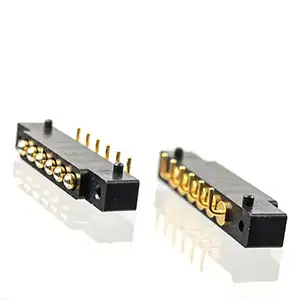

Federkontakt Rolling Pin Beispiel: Federkontaktstecker Rolling TypeFederkontakt mit Ball Spitze Rolling Type



Standard Types

ArtikelTypLänge
(mm)		PlugLebensdauer
(Zyklen / min)		FederkraftDatenblatt
SVPC-RF-P5079FP04Flat Type3,52.00060gpdf
SVPC-RF-P5079FP06Flat Type4,02.00060gpdf
SVPC-RP-P5982MP53CHRPlug-In Stecker23,01,1200.00060gpdf
SVPC-RP-P5982PP02Plug-In Type9,451,15.00060gpdf
SVPC-RP-P5982PP03Plug-In Type9,451,15.000 80gpdf
SVPC-RP-P5982PP05Plug-In Type9,451,1200.00060gpdf
SVPC-RP-P6217PP01Plug-In Type15,01,5200.00060gpdf

Elektronische Geräte werden immer kleiner, schneller und effizienter. Diese Miniaturisierung stellt höchste Anforderungen an die Fertigungstechnik, denn immer mehr Funktionen müssen in die kleinen Geräte integriert werden. Das neue Federkontaktdesign mit integriertem Schraubgewinde am Kolben, hilft diesen Anforderungen gerecht zu werden.

Neben der Funktion als Schraube, können auch Leistungs- und Signalströme übertragen werden.

Das Schraubgewinde kann bei allen kundenspezifischen Federkontakten mit einer Kolbenlänge ab 3,5mm integriert werden. Der Nennstrom beträgt dabei 1A und der Kontaktwiderstand 200 μΩ.

Die Federkontakte sind mit mind. 5 µin Gold beschichtet und haben eine Lebensdauer von mindestens 10.000 Zyklen.

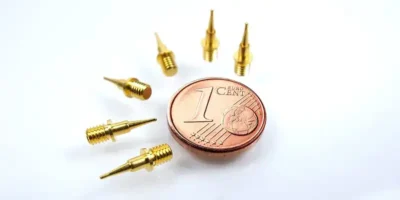

Schraub Federkontakt Screw Pogo Pin
Schraub Federkontakt (Screw Pogo Pin)
Federkontakt mit Schraubkolben
Federkontakt mit Schraubkolben

Anwendungsbereiche

Anwendung finden Federkontakte im Bereich der Strom- und Datenübertragung wie z.B.: in Akku-Ladestationen und Batteriefächern von elektronischen Geräten (Docking Station), speziell in Kommunikationsgeräten, wie Smart Phones, Tablet PC und Laptops und zur Erdung an Gehäusen. Besonders eignen Sie sich für die Kontaktierung von unebenen Oberflächen.

Vorteile von Federkontaktstiften

  • hohe Lebensdauer
  • einstellbare und messbare Federkraft
  • kleines Rastermaß / platzsparend gegenüber konventionellen Steckverbindern
  • SMD Bestückung möglich
  • gute Performance bei Hochfrequenzanwendungen
  • RoHs konform und halogenfrei
  • Nennstrom: 2A bei den Standardausführungen bis max. 13A durch spezielles Design (ab einer Federkontaktstift-Länge vom 7mm)

Aufbau


Aufbau eines Federkontaktes
Aufbau Federkontakt
Ein Federkontaktstift besteht aus 3 Teilen: einem Kolben, einer Feder und einer Stifthülse. Mehrere Federkontaktstifte können in einem Kunststoffgehäuse zu einem Federkontaktkonnektor zusammengefügt werden. Es sind verschiedene Standardversionen verfügbar (Übersichtstabellen). Zusätzlich können auch kundenspezifische Konnektoren in Bezug auf Rastermaß, Pinanzahl und Gehäuseabmessungen realisiert werden. Unterschiedliche Anschlussformen erlauben eine Vielzahl von Montagemöglichkeiten auf SMD bestückbaren Leiterplatten.

Design Varianten

Um einen 100% Kontakt des Kolbens mit der Stifthülse zu garantieren, wird das Bias-Design eingesetzt. Bei diesem Design wird der Kolben an seinem Ende in einem Winkel von bis zu 18° angeschrägt und so in die Stifthülle eingesetzt. Dadurch wird bei Betätigen des Federkontaktstiftes ein 100% Kontakt des Kolbens mit der Stifthülse gewährleistet. Dies reduziert die Signalstörung in Folge von Vibrationen signifikant. Das Bias Design wird bei fast allen Federkontaktstiften ab einer Länge von 3,5mm angewandt.

Bei kleineren Bauweisen wird das sogenannte Back Drill Design angewandt. Um die kundenspezifisch gewünschte Federkraft zu erreichen, ist bei diesem Design die eingesetzte Feder länger als der hohle Kolben.

Design Varianten von Federkontakten
Design Varianten von Federkontakten

Bei hohen Anforderungen an die Stromtragfähigkeit (> 3A) und Vibrationsbeständigkeit wird das Bias Design um das 4P-Design ergänzt.

Wenn der Kolben und die Stifthülse eines Federkontaktstiftes sich bei hohen Strömen durch zu geringe Lateralkräfte nicht richtig verbinden, kann es zum verglühen der Druckfeder kommen. Um dies auszuschließen werden beim 4P-Design die bisherigen drei Komponenten eines Federkontaktstiftes (Kolben, Druckfeder und Hülse) um einen Edelstahlball als vierte Komponente ergänzt. Dieser Ball wird zwischen dem Kolben und der Druckfeder integriert. Der Stromfluss wird über den Edelstahlball auf die Hülse leitet, zudem wird die Signalstörung in Folge von Vibrationen signifikant reduziert. Alternativ zum Edelstahlball kann im 4P-Design auch eine Kappe eingesetzt werden.
Double Ended Pogo Pin
Variante: Double Ended Pogo Pin - Federkontakt mit zwei gefederten Kolben

Mechanische Spezifikationen

Die mechanischen Spezifikationen (Abmessungen, Federkraft, Federweg, ggf. Rastermaß bei Konnektoren) sind typenabhängig. Kundenspezifische mechanische Spezifikationen sind möglich.

Elektrische Spezifikationen

  • Nennstrom: 2A bei den Standardausführungen - bis max. 13A durch spezielles Design
  • Kontaktwiderstand: < 100mΩ (abhängig vom Design)

    • Material


    Bauteil Material
    Kolben & Stifthülse Messing, Berylliumkupfer, Phosphor-Bronze, SK4 - Stahl, (Standard: Messing C3604)
    Feder Edelstahl , Federstahldraht , Berylliumkupfer (Standard: Edelstahl)
    Kunststoffgehäuse HTN , LCP , PBT, PA10T (Standard: HTN)

    Beschichtung

    Der Federkontaktstift wird mit Gold beschichtet, da es eine exzellente elektrische Leitfähigkeit hat und einen hohen Schutz vor Korrosion und Oxidation bietet. Die Stifthülse und der Kolben werden üblicherweise doppelt beschichtet (zunächst mit Nickel 1-2μm und anschließend mit Gold 0,1-1μm). Die Feder wird entweder mit Gold oder mit Silber beschichtet. Applikationsspezifisch sind auch andere Edelmetallbeschichtungen des Kolbens möglich (Palladium, Rhodium, etc.).
    Federkontaktstift

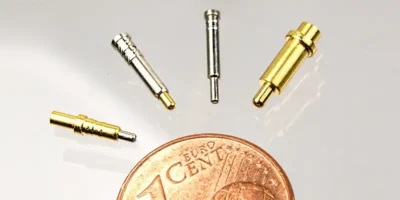

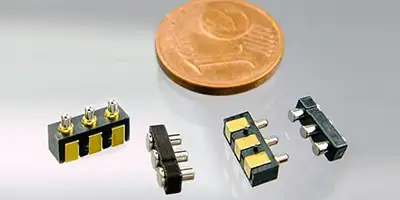

    Federkontaktstifte mit verschiedenen Beschichtungen


    Federkontakte mit Bestückungskappe für die automatische Bestückung

    Auf Kundenwunsch können wir fast alle Federkontakte kostengünstig mit Bestückungskappen liefern. Und das sowohl für einzelne Pins, als auch für komplette Federkontakt Konnektoren. Die Federkontakte werden dabei auf Rolle geliefert und sind somit einfach in der automatisierten Leiterplattenbestückung zu verwenden.
    Federkontakte mit Kappe für die automatische Bestückung

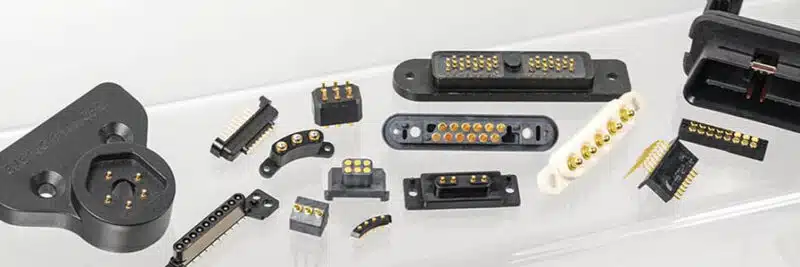

    Steckverbinder mit Federkontakten

    Wir realisieren kundenspezifische Steckverbinder auf Basis von u.a. Federkontaktstiften. Durch die Vielzahl an Federkontakten können z.B. besonders kleine Steckverbinder, wasserdichte Lösungen(IPx5 bis IPx8), magnetische Steckverbinder und spezielle Lösungen für Hochstrom Anwendungen realisiert werden. Auch die Fertigung kompletter Baugruppen mit Steckverbinder und Kabelkonfektionierung bieten wir kostengünstig an.
    kundenspezifischer Steckverbinder
    kundenspezifischer Steckverbinder

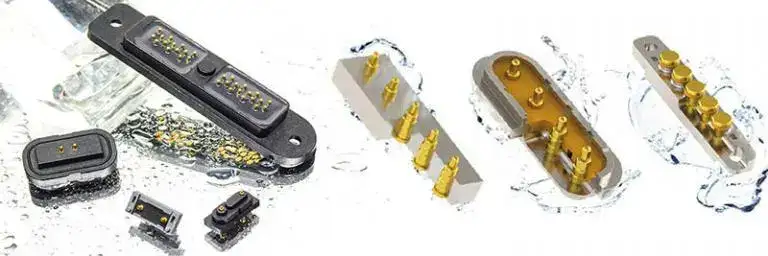

    Wasserdichte Steckverbinder mit Federkontakten

    Durch verschiedene Konstruktionen können die Steckverbinder Schutzklassen von IPx5 bis IPx8 erfüllen. Dabei werden die Federkontakte entweder direkt umspritzt oder mit speziellen Dichtungen ergänzt bzw. vergossen.
    Wasserdichter Steckverbinder mit Federkontakten
    Wasserdichter Steckverbinder mit Federkontakten

    Alle Steckverbinder können kundenspezifisch in Bezug auf Rastermaß, Pin-Anzahl und Gehäuseabmessung angepasst werden. Bitte kontaktieren Sie uns einfach.

    Magnetische Steckverbinder



    Ein magnetischer Steckern besteht aus Federkontaktstiften und einem magnetischen Verbindungssystem. Die Implementierung eines Magneten sorgt für eine schnelle schock- und vibrationsbeständige, sowie selbstführende Verbindung bzw. einfache Lösung von Stecker und Gerät. Durch die Federkontakte können nicht nur Ladestrom, sondern auch alle andere Arten von Signalen übertragen werden. Die Kontaktpunkte werden im Gerät mit der Platine verlötet. Die Kontaktpunkte werden im Gerät mit der Platine verlötet. Vorteil dieser Technik ist die hohe Funktionssicherheit bei einer sehr hohen Zyklenanzahl von mindestens 10.000 Wiederbefestigungen... mehr über magnetische Steckverinder >>

    Auf Basis von Federkontakten realisieren wir auch kundenspezifische Steckverbinder.

    Durch die Vielzahl an Federkontakten können besonders kleine Steckverbinder, wasserdichte Lösungen (IPX6 / IPX7) und spezielle Lösungen für Hochstrom Anwendungen, sowie magnetische Steckverbinder realisiert werden.

    Auch die Fertigung kompletter Baugruppen mit Steckverbinder und Kabelkonfektionierung bieten wir kostengünstig an.

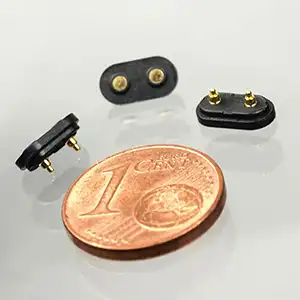

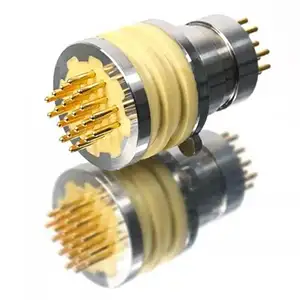

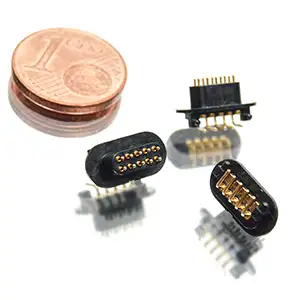

    Beispiele realisierter Steckverbinder



    Anfrage bei N&H Technology



    We would be glad to send you an offer for your pogo pin project and looking forward to help you finding the right product. Please notice, that we can not only supply single pogo pins, as well as customized connectors with the suitable cable assembly.

    We advise you on the selection of suitable materials and offer cost reduction options. We offer you an active co-operation in the development and construction and give suggestions for improvement.

    For a technical consultation please contact us by phone: +49 (0) 2154 - 81250. Also a personal meeting in our office or at your place is possible by appointment.

    For an offer we need:

    • technical drawing, sketch or pattern
    • technical specifications, equipment extras
    • required amount

    Please send following informations to: info@nh-technology.de

    One of our engineering experts will contact you asap.

    Of course, you can also use our contact form

    Your Name*

    Company*

    Street*

    Place*

    Country*

    E-Mail*

    Subject*

    Your Message*


    *Required field

    Download Katalog "Federkontakte" >>

    Tabellarische Produktübersicht (.xls) >>
