Piezoelectric buttons
High-quality piezo switches as standard solution and customer-specific
We offer a series of piezo buttons with installation diameters of 12mm, 16mm, 19mm and 22mm, which are ideal for a wide range of applications. Piezoelectric buttons are characterized by their high reliability and longevity and are perfect for demanding applications.
Piezoelectric switches – robust, versatile and intuitive

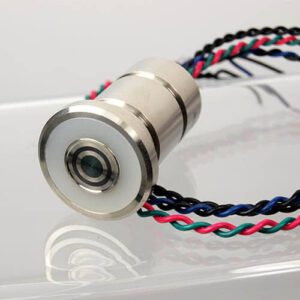

Our piezo button are available in a variety of shapes, including flat and concave, making them ideal for a wide range of applications in Medical Technology, Industrial and in outdoor areas. For intuitive operation, we offer models with integrated LED lighting, which are available either as ring-shaped or point-shaped lighting.
The piezoelectric button are after IP68 certified and feature a fully enclosed actuation surface that makes them waterproof and dustproof, making them perfect for demanding and harsh environments.

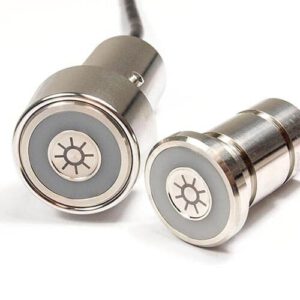

For the housing you can choose between Aluminium and Stainless Steel The aluminum housing can be anodized in different colors to meet your individual design requirements. This flexibility allows you to ideally combine functionality and aesthetics.
Visit our Online Catalogto select a Piezo buttons in standard versions. Select the right products and enquire about them directly – quickly and easily.
Inquire directly via our online catalogue:
Customized piezo buttons
– Perfectly tailored to your requirements

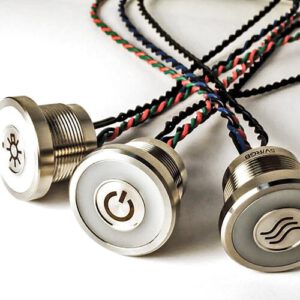

In addition to our standard range, we also manufacture customized piezoelectric switchesthat are tailored to your needs. You can choose pressure hood with individual symbols or labels. We also offer special housing designsto meet your technical requirements and design wishes.
It works that easy:
Let us know your requirements by E-mail with, and our team of Engineers develops your tailor-made piezo buttonYou will then receive an individual offer. If you have any questions, we will be happy to advise you comprehensively to find the perfect solution for your application.
Advantages of piezo buttons
- Long life:
Piezoelectric buttons are extremely durable and can withstand up to 50 million actuation cycles. Since they have no mechanically moving parts, there is no wear due to mechanical stress. - High reliability:
Thanks to their robust construction and sealing according to IP68 make piezo button waterproof and dustproof. This makes them perfect for use in demanding environments, such as Industrial automation or the Medical Technology. - Easy to clean:
The smooth, closed surface allows for easy cleaning and makes piezo button hygienic – ideal for applications in the Food industry and in the Health services.
- Wide operating temperature range:
Can be used at temperatures of -40 ° C to + 75 ° C, which makes them versatile. - Flexible design options:
Available in different shapes and lighting types, such as ring or point LED lighting. - Customization:
Individual symbols and special housing designs can be easily realized.
What are piezoelectric switches?
Piezoelectric buttons, also known as piezo button, use the piezoelectric principleto generate electrical signals through mechanical pressure. This technology is based on the piezoelectric effect: when certain materials, such as ceramics or crystals, are mechanically deformed, they generate an electrical voltage.
When you press a piezoelectric button The user applies pressure to a piezoelectric ceramic or crystal. This pressure generates an electrical voltage, which is then converted into a switching signal. piezo button Because they have no moving parts, they are extremely reliable and durable – a clear advantage over conventional mechanical switches.
Fields of application
piezo button are versatile and are used in various industries:
- Industrial automation: For controlling machines and systems.
- Medical Technology: As control elements for medical devices.
- security and access control systems: For doors and gate controls.
- vehicle technology: As control elements in vehicles.
- Technical Building Services: For light switches and control systems.
Stainless steel push button
In addition to our piezo buttons, we also offer high quality ones Stainless steel push button at. These buttons are particularly robust and durable, ideal for applications that require high resistance to environmental influences.
