Glass Parts

Glas-Formteile



Glass surfaces are extremely smooth and meet high hygiene requirements. They are more resistant than plastic and have a high temperature, as well as high chemical resistance. In addition, glass decors ensure a design-oriented and high-quality finish.

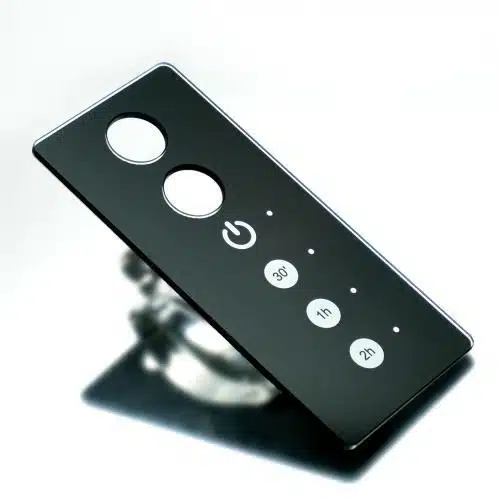

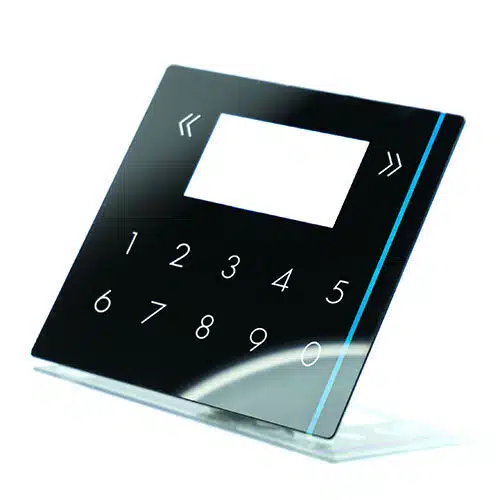

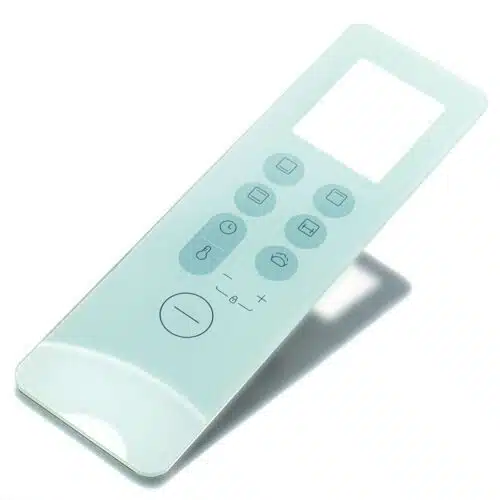

We offer molded glass parts for a variety of industrial and electronic applications. These include, for example, cover glasses and decor glasses for electronic products and protective glasses for displays.

The glasses are usually made of float glass or white glass and thermally hardened ESG glass. The strength is from 0.55 to 19.0mm. For applications in the field of display protection, we also offer ultra-thin chemically hardened front glasses (0.3 – 8.0 mm).

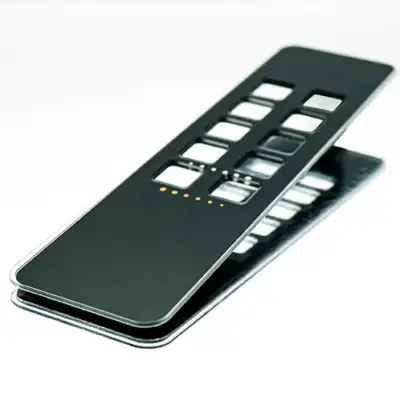

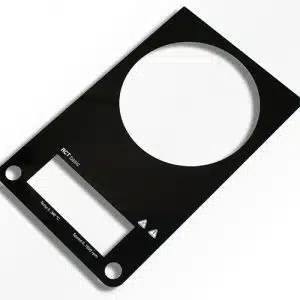

The glass parts can be cut to order in a variety of shapes. Holes, cut-outs or depressions can be easily implemented depending on the material and in compliance with the usual tolerances. The glass edges can be processed by different grinding methods. In addition to the classic edge grinding, facets and miter edges are also possible.

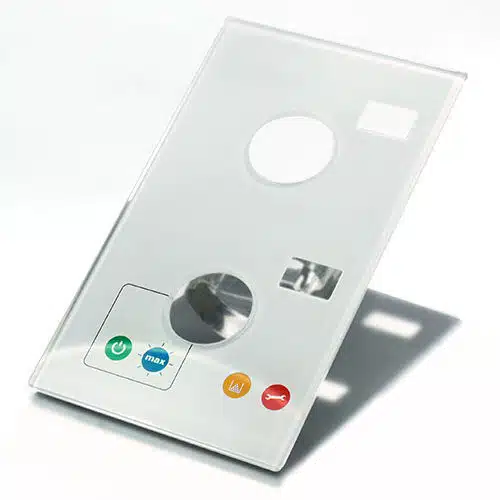

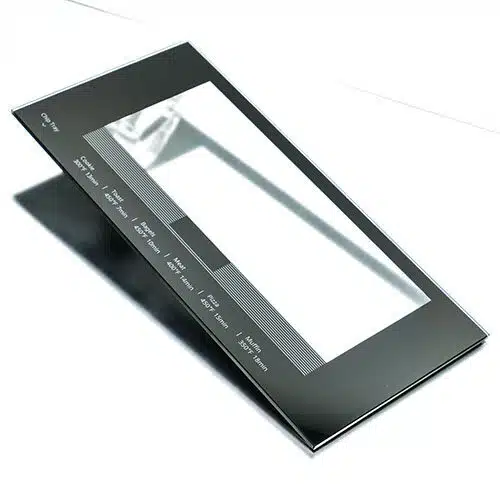

Screen printing offers a variety of design options, also translucent prints for a “disappearance” effect for LEDs and light sensors. In addition to classic screen printing, digital printing is also available for decors and photorealistic images, as well as the matting of the surfaces by sandblasting or etching.
The sandblasting process destroys the glass surface in a purely mechanical way. As a result, the glass is very rough and is therefore sensitive to dirt. In glass etching, the glass surface is calendered by chemical means. It is therefore easier to clean and hardly absorbs dirt.

Non-slip glass surfaces for e.g. Personal scales can be realized by these two methods, but by a special anti-slip paint also.



  • Cutting
  • Milling
  • Grinding
  • Drilling
  • Milling
  • Sandblasting
  • Etching
  • Silk Screen Printing
  • Digital Printing
  • glass panes with various optical coatings

      • Anti-reflex (AR)
      • Anti-glare (AG)
      • PDP-Filter Glass
      • ITO
      • Anti-reflex + ITO
      • mirror
      • EMI

    thermal tempered glass parts

    • thickness: 0.5 - 19 mm
    • also with ITO coating

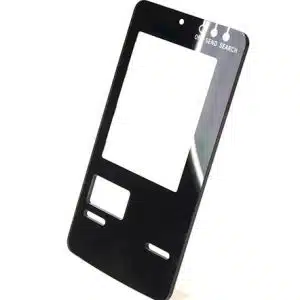

    chemically strengthened glass

    • thickness: 0.3 – 8.0 mm
    • Surface hardness of up to 9H for scratch resistance
    • Compressive strength of & gt; 600 Mpa for breaking strength

    Anfrage bei N&H Technology



    On the basis of your sample, your specification or technical drawing, we will create an individual offer and support you during the project.

    We advise you on the selection of suitable materials and offer cost reduction options. We offer you an active co-operation in the development and construction and give suggestions for improvement.

    For a technical consultation please contact us by phone: +49 (0) 2154 - 81250. Also a personal meeting in our office or at your place is possible by appointment.

    For an offer we need:

    • technical drawing, sketch or pattern
    • technical specifications, equipment extras
    • required amount

    Please send following informations to: info@nh-technology.de

    One of our engineering experts will contact you asap.
